Why Your Suspension Is the Unsung Hero
Your suspension does a lot more than cushion potholes. It keeps the tires glued to the asphalt, steadies the body through corners, and protects the rest of your car from the relentless drumbeat of road vibration. When the system is healthy, the car feels planted and precise. When it’s not, comfort fades, control gets fuzzy, and other parts start wearing out faster than they should.
A modern suspension is a choreographed ensemble—shocks and struts handle damping, control arms manage geometry, bushings isolate noise, and ball joints provide the pivot that lets your wheels move up and down while steering left and right. If one piece falters, the whole routine starts to lose rhythm.
What Ball Joints Actually Do
Ball joints are like your car’s front-end wrist: small, hard-working, and continuously moving. Each spherical bearing connects a control arm to a steering knuckle, allowing the wheel to articulate vertically with the suspension and spin with the steering system. They’re sealed, lubricated, and can withstand thousands of miles, but they’re not immortal.
Over time, the joint’s internal wear, dried grease, and torn boots invite grit and water inside. That’s when the symptoms start.
Spotting Worn Ball Joints
Ball joints telegraph their trouble if you know what to listen and look for:
- Clunks or knocks over bumps, especially at low speeds.
- Uneven tire wear that can’t be explained by simple alignment drift.
- Steering that feels loose, wanders, or doesn’t return to center cleanly.
- A general sense that the front end is vague or delayed in its response.
Drive long enough on a failing joint and the risks climb. A ball joint that separates can cause catastrophic loss of steering control—this is one repair you don’t push off.
Why Press-Fit Ball Joints Need the Right Tool
Most ball joints are press-fit into their housings with serious interference, which is mechanic-speak for “they’re in there tight on purpose.” That tight fit keeps the joint from shifting under load. It also means you can’t reliably remove or install them with a hammer and hope. Improvised methods may damage control arms, oval the bore, deform the joint shell, or seat a new part crooked—all of which spell more headaches and potential safety issues.
Enter the ball joint press kit: a simple, heavy-duty solution designed to apply straight, controlled force exactly where it’s needed.

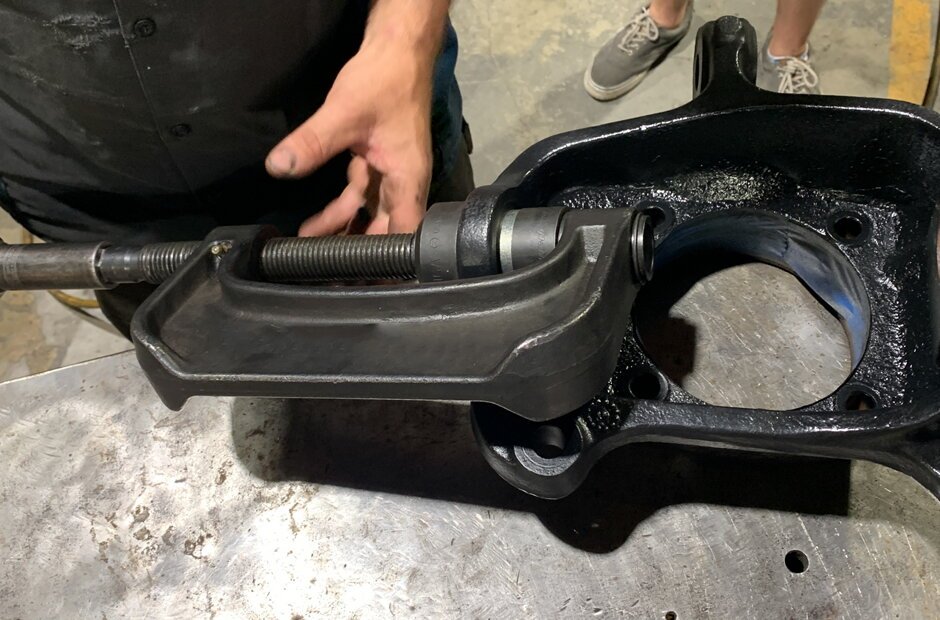

Inside a Ball Joint Press Kit
A well-made kit is all about leverage and accuracy. Most include:
- A heavy-duty C-frame press that provides the clamping force.
- Assorted cups, adapters, and receiving tubes sized to different joints.
- A forcing screw with a hardened tip to drive the joint in or out smoothly.
The adapters are the unsung heroes here—they let you press against the correct surfaces so you don’t crush a new joint or scar the control arm. Set up correctly, the press moves the joint with slow, confident pressure rather than chaotic impacts.
Advantages of Using a Press Kit
Beyond saving knuckles and parts, a press kit brings a professional feel to a DIY weekend:
- Speed and control: Apply steady force, no drama, no guesswork.
- Damage prevention: Press on the right surfaces and protect delicate housings.
- Clean installation: Seat the new joint squarely so it lasts and steers true.
- Real savings: The tool pays for itself compared with repeated shop labor.
If you enjoy tackling maintenance yourself, a sturdy press kit quickly becomes a staple.
A Walkthrough: Replacing Ball Joints with a Press Kit
Every vehicle has its quirks, but the flow is similar across most makes and models. Here’s the big-picture run-through, the way a calm, methodical tech would do it:
- Prepare safely: Park on level ground, loosen lug nuts, lift the vehicle, and set it on quality jack stands. Remove the wheel for access.
- Map your path: Identify the ball joint and the parts that crowd it—sway bar links, brake calipers, rotors, tie rods, or struts may need to be moved aside.
- Separate components: Free the ball joint stud from the knuckle using the correct separator (never wedge the stud threads). Support the control arm to control spring tension if applicable.
- Set the press: Choose the adapter that supports the control arm around the joint without contacting fragile areas. Position the receiving tube on the side you’ll press the old joint toward.
- Press it out: Run the forcing screw with a hand ratchet or breaker bar. Slow, even pressure is key—if it binds, realign the adapters rather than muscling through.
- Prep the bore: Clean rust and debris from the control arm bore with a wire brush. Inspect for cracks, distortion, or damage before installing the new joint.
- Press it in: Align the new joint (orientation matters for some designs), select the cup that presses on the outer shell, and seat it flush. Don’t press on the stud or dust boot.
- Reassemble: Reconnect the knuckle, torque fasteners to spec, reinstall any removed components, and mount the wheel. A post-repair alignment is wise and often necessary.
If you hear creaks or feel binding when torquing, pause and re-check your seating. A properly pressed joint sits square and silent.
Picking the Right Kit
Not all kits are created equal, and the right one depends on what you work on:
- Compatibility: Universal kits are versatile, but larger trucks and certain specialty suspensions may need specific adapter sizes.
- Construction: Look for a thick, rigid C-frame and a hardened forcing screw that resists flex and galling under load.
- Adapter coverage: A broad range of cups and receiving tubes makes the kit useful across multiple vehicles and joint styles.
- Serviceability: Replaceable forcing screw tips and greasable threads extend life and smooth operation.
Spending a little more on robust build quality and comprehensive adapters reduces frustration and keeps the kit useful for years.
Small but Important Notes
Even with the right tool, the details matter. Keep threads clean and lightly lubricated on the press screw, but never oil the joint’s press-fit surfaces. Support heavy components so the control arm isn’t stressed while you press. And if your vehicle uses camber bolts or eccentric bushings near the joint, mark their positions before disassembly to help the alignment tech later.
FAQ
Do I need an alignment after replacing ball joints?
Usually yes, because front-end geometry can shift during replacement and precise alignment protects tires and steering feel.
Can I replace ball joints without a press?
It’s risky and often ineffective; a proper press ensures safe removal and a square, damage-free installation.
How long does the job take?
For a DIYer with a solid kit, expect a few hours per side depending on rust, access, and vehicle design.
Are upper and lower ball joints different?
Often they are, with different load directions, sizes, and mounting styles; always match parts to position and application.
What are signs of failure I shouldn’t ignore?
Clunking over bumps, uneven tire wear, and loose steering are red flags that warrant immediate inspection.
Is it safe to drive with a bad ball joint?
No; a severely worn joint can separate and cause sudden loss of steering control.
Should I replace both sides at once?
It’s smart practice when mileage and wear are similar, helping keep handling balanced and maintenance intervals aligned.
What size press kit do I need?
Choose a kit with adapters that match your vehicle’s joint diameters and control arm style; universals work for most passenger cars.
Can a press kit be used for U-joints or bushings?
Many kits can, with the right adapters, but verify compatibility before pressing different components.
How much torque for ball joint hardware?
Follow your vehicle’s factory specs; correct torque ensures clamp load and long-term reliability.
